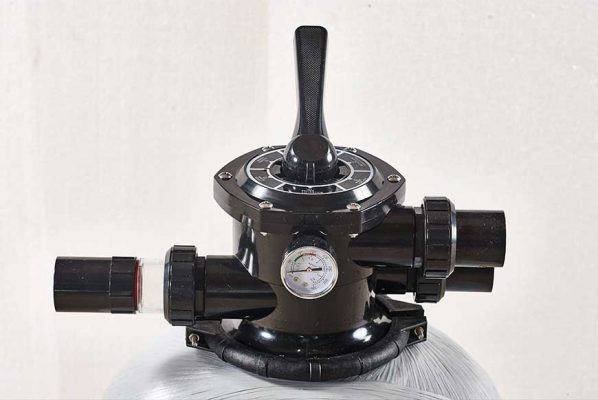

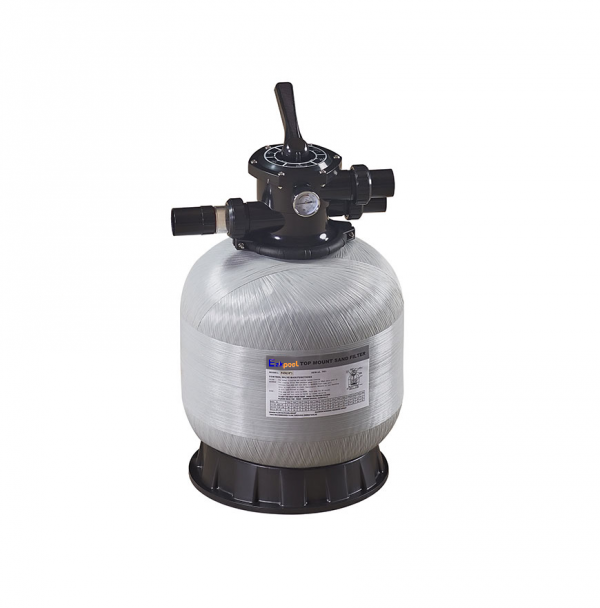

Fiberglass pool sand filter can be a long time in the sun to operate, but also can adapt to different weather, because it uses a glass fiber and polyester technology, the top of the configuration of a multi-functional 6-way valve, all with ABS material;
The more things are trapped in the filter bed, the clearer the water filtered by the sand cylinder and the higher the efficiency of the sand cylinder. All the procedures have multi-directional valve operation and regular recoil and blow-down.

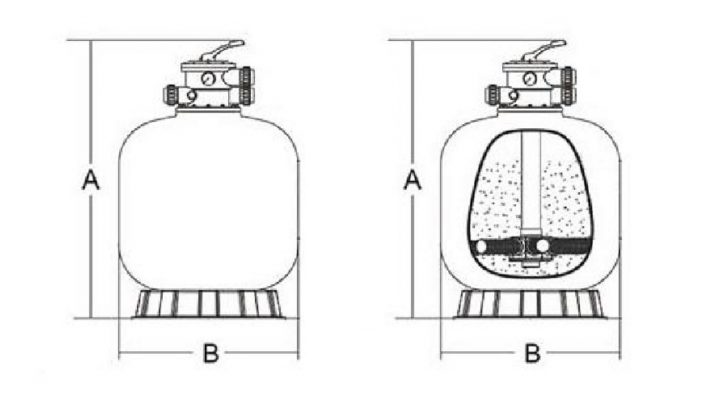

| Technical Characteristics | ||||||
| Mode | Filter Area (㎡) | Valve Connections | Max Flow Rate | Gravel (kg) | A mm | B mm |
| E400 | 0.13 | 1.5inch 50mm | 8m³/h | 35 | 760 | 400 |
| E450 | 0.16 | 1.5inch 50mm | 10m³/h | 45 | 815 | 450 |
| E525 | 0.22 | 1.5inch 50mm | 12m³/h | 85 | 880 | 525 |
| E625 | 0.30 | 1.5inch 50mm | 16m³/h | 150 | 1005 | 625 |
| E700 | 0.40 | 1.5inch 50mm | 20m³/h | 210 | 1100 | 700 |
| E700B | 0.40 | 2.0inch 63mm | 21m³/h | 215 | 1150 | 700 |
| E750 | 0.45 | 2.0inch 63mm | 23m³/h | 300 | 1180 | 750 |
| E800 | 0.50 | 2.0inch 63mm | 25m³/h | 355 | 1310 | 800 |
| E900 | 0.64 | 2.0inch 63mm | 31m³/h | 470 | 1380 | 900 |
| E1000 | 0.79 | 2.0inch 63mm | 36m³/h | 620 | 1495 | 1000 |
| E1100 | 0.96 | 2.0inch 63mm | 42m³/h | 800 | 1580 | 1100 |
| E1200 | 1.13 | 2.0inch 63mm | 56m³/h | 900 | 1600 | 1200 |
| E1400 | 1.54 | 2.0inch 63mm | 64m³/h | 1350 | 1810 | 1400 |
Highlight Features:
- Operating pressue 2.5 bar
- Testing pressure: 4.0 bar
- Max temperature of 50°C (122°F)
- Universal standard of union connection provided
- Suggested size of media: 0.5-1.2mm
