Water Faery air pum core technology original from Italy. Brass pumps are molded with casr copper,solid ,durable and reliable.Internal strainer,easy to clean,large flow, high-lift.Rapid self priming capability with internal heat sink ensures maximum cooling of the seal. Ideal for portable spas ,Publix pool water amusement park,seawater,industrial and other application.
2.Centrifugal blower description
——————————–
1).specifications: 550W/220V,750W/220V,1100W/220V,1500W/220V,2000W/220V
2).Used for spa pools, massage pool and chung pools etc
3).Centrifugal circulation design,Pressure big, big air volume
4).Airflow cushioning design low noise
5).Starting torque small ,working process is stable and reliable
6).No oil lubrication design, gas more pure
7).Power allocation range, the service life is long
3. Centrifugal blower technical data
———————————
Voltage Power MAX Pressure Normal pressure (Kpa) Max flow Air(m3/h) Gross Weight (kg/set) Dimension (mm)/set
380v 1 16 11 100 12.5 294*288*315
380v 2 19 14 110 m³/h 14.5 294*288*315
380v 3 25 16 50 33 332*328*315
380v 5 32 23 200 37 345*360*371
380v 7.5 35 26 235 65 401*392*403
380V 10 42 31 320 121 410*392*404

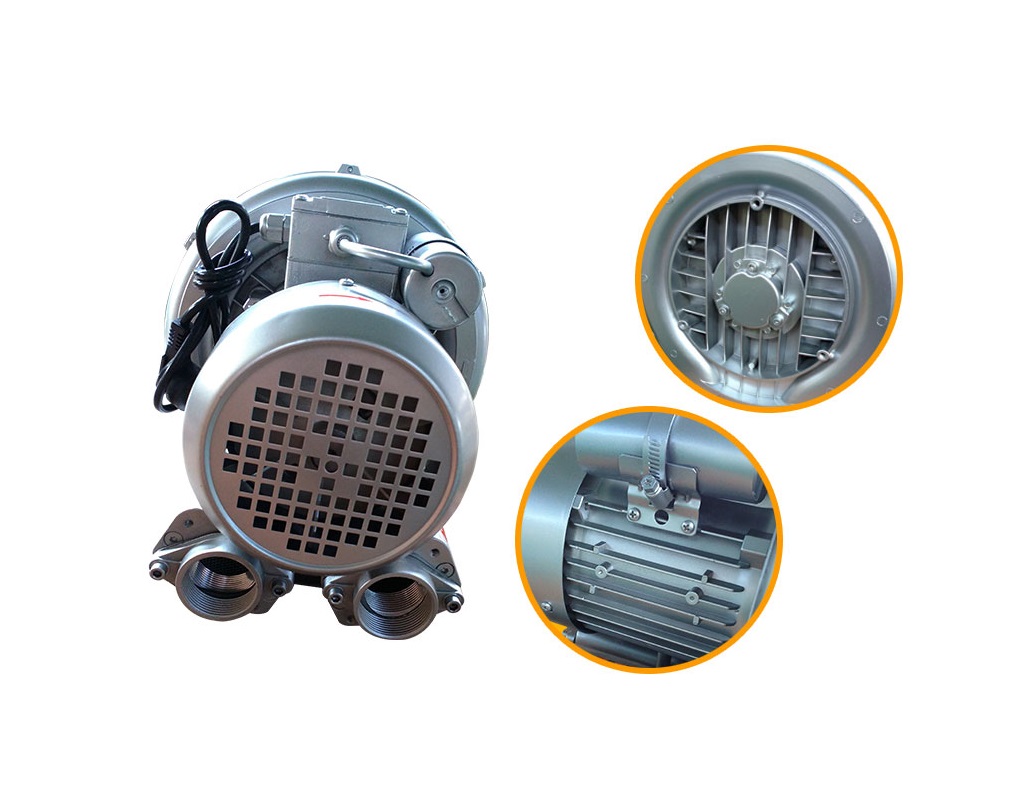

4.Centrifugal blower picture and effect
